What is this about?

The Gripper Holder Generator is a web-based parametric tool for designing custom robotic gripper holders (end-of-arm tooling).

Configure the number of gripper arms, adjust dimensions, add custom text engravings, preview the geometry instantly, and export production-ready STL files for 3D printing or CNC machining.

Number of grippers

Arms = number of grippers

Thickness (min 5 max 50 mm)

Base diameter Ø (min 10 max 300 mm)

Arm width (min 10 max 150 mm)

Arm length (min 10 max 200 mm)

Recess diameter Ø (min 63 max 120 mm)

Recess depth (min 1 max 20 mm)

Engraved text on the back side

Top text (max ~40 chars)

Bottom text (max ~80 chars)

If downloads are slow: disable text or use Draft.

Quality (download)

Free download: Normal quality. Purchased: High quality (fn=120) with text engraving. Not licensed for production use.

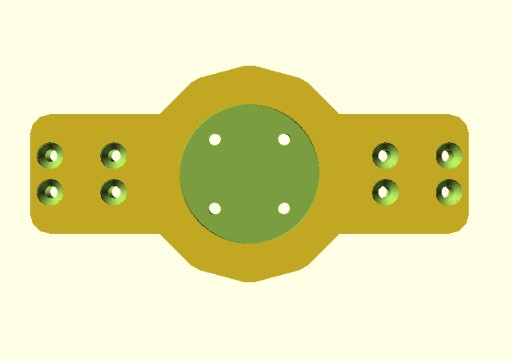

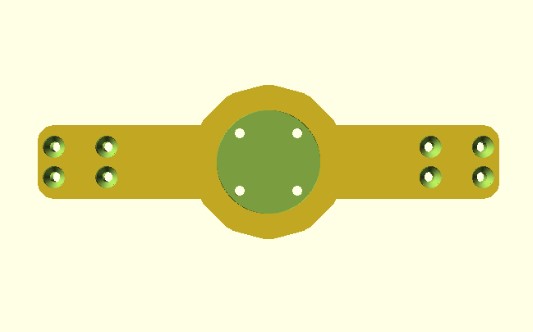

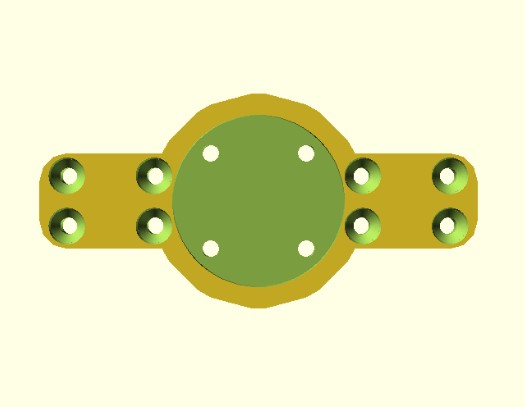

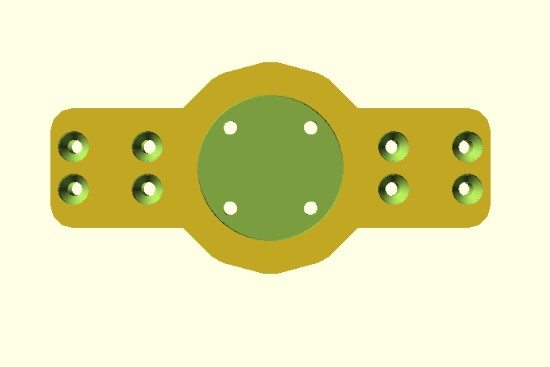

Example presets

Ready.

Quick Preview (PNG)

Generating

3D Inspect (STL)

Click "3D Preview (STL)"

Generating
